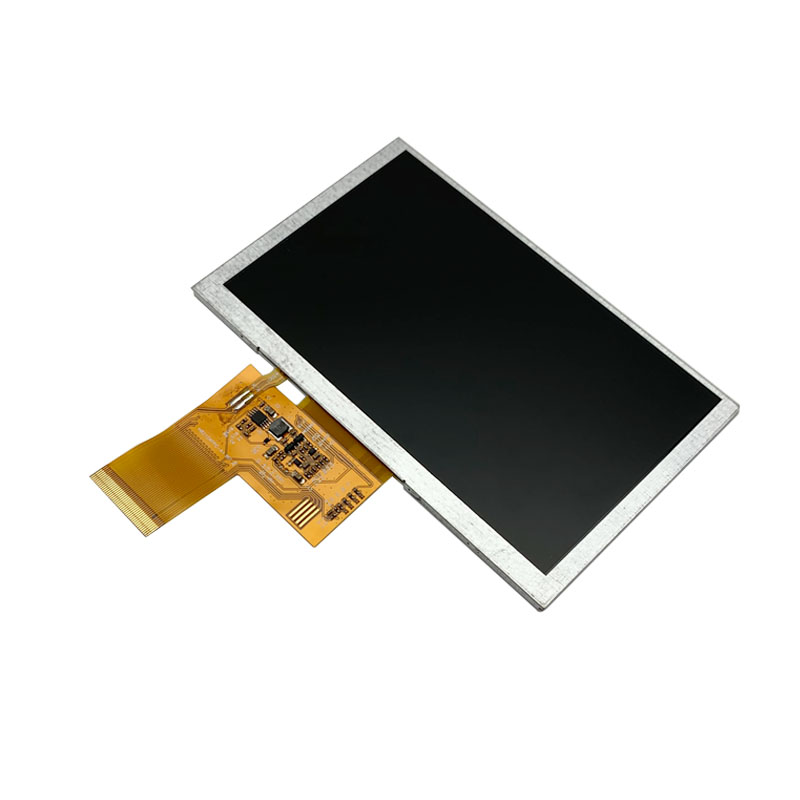

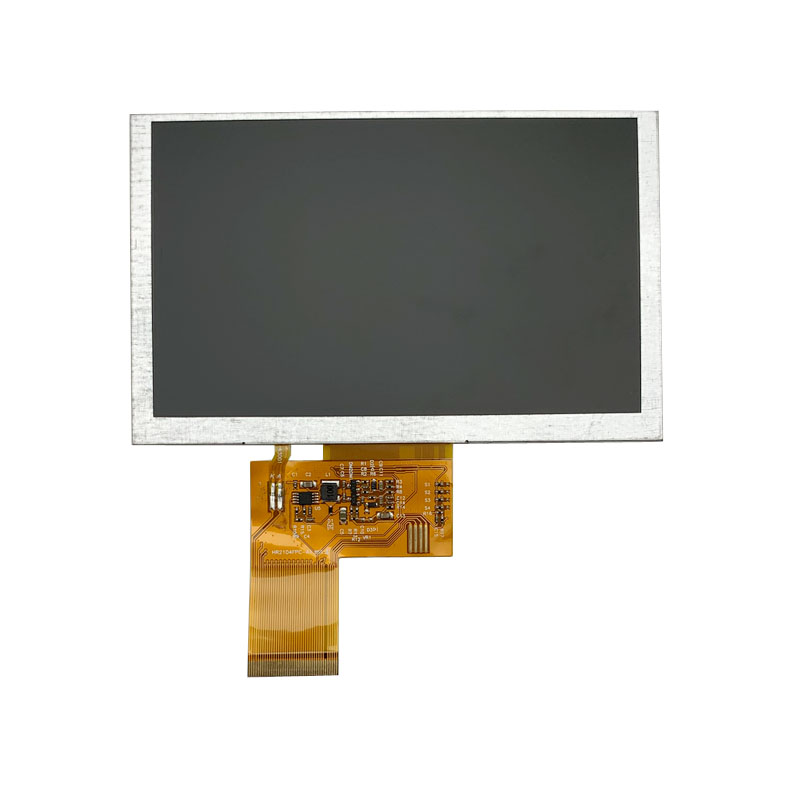

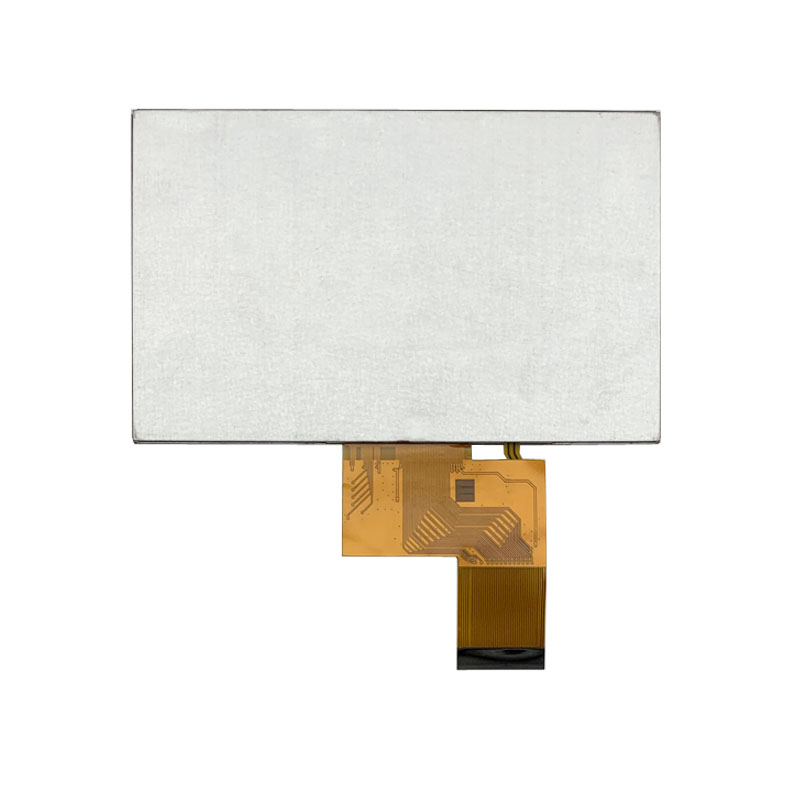

5英寸 800 * 480, 定制5英寸,TFT-LCD面板
DESCRIPTION

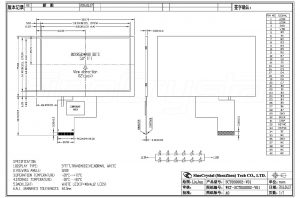

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
|---|---|---|
| RESOLUTION | 800×3(RGB)×480 | Pixel |
| MODULE DIMENSION | 120.7×75.8×2.8 | Mm |
| ACTIVE AREA | 108.00×64.80 | Mm |
| DOT SIZE | – | Mm |
| DOT PITCH | 0.135×0.135 | Mm |
| LCD TYPE | TFT , Normal White, Transmissive | |
| DUTY | – | |
| VIEWING DIRECTION | 12:00(Human eyes) 6:00(Gray Inversion) | o’clock |
| BACK LIGHT TYPE | SIDE-LIT LED | |
| BACK LIGHT COLOR | WHITE | |
| APPROX. WEIGHT | – | G |
Interface Definition
| NO | SYMBOL | LEVEL | FUNCTION |
|---|---|---|---|
| 1 | LEDK | – | LED light,cathode |
| 2 | LEDA | – | LED light,anode |
| 3 | GND | – | Ground |
| 4 | VCC | – | Power supply |
| 5 | R0 | H/L |
Graphic Data Input Pins. Internal pull low. – R [7:0]: Red Data – 8-bits – G [7:0]: Green Data -8-bits – B [7:0]: Blue Data – 8-bits |
| 6 | R1 | H/L | |
| 7 | R2 | H/L | |
| 8 | R3 | H/L | |
| 9 | R4 | H/L | |
| 10 | R5 | H/L | |
| 11 | R6 | H/L | |
| 12 | R7 | H/L | |
| 13 | G0 | H/L | |
| 14 | G1 | H/L | |
| 15 | G2 | H/L | |
| 16 | G3 | H/L | |
| 17 | G4 | H/L | |
| 18 | G5 | H/L | |
| 19 | G6 | H/L | |
| 20 | G7 | H/L | |
| 21 | B0 | H/L | |
| 22 | B1 | H/L | |
| 23 | B2 | H/L | |
| 24 | B3 | H/L | |
| 25 | B4 | H/L | |
| 26 | B5 | H/L | |
| 27 | B6 | H/L | |
| 28 | B7 | H/L | |
| 29 | GND | H/L | Ground |
| 30 | CLK | H/L | Clock signal |
| 31 | DISP | H/L | Display on/off |
| 32 | HS | H/L | Horizontal sync input in RGB mode |
| 33 | VS | H/L | Vertical sync input in RGB mode |
| 34 | DE | H/L | Data enable |
| 35 | NC | – | No used |
| 36 | GND | – | Ground |
| 37 | NC(XR) | – | No used (Touch panel right) |
| 38 | NC(YD) | – | No used (Touch panel bottom) |
| 39 | NC(XL) | – | No used (Touch panel left) |
| 40 | NC(YT) | – | No used (Touch panel top) |
