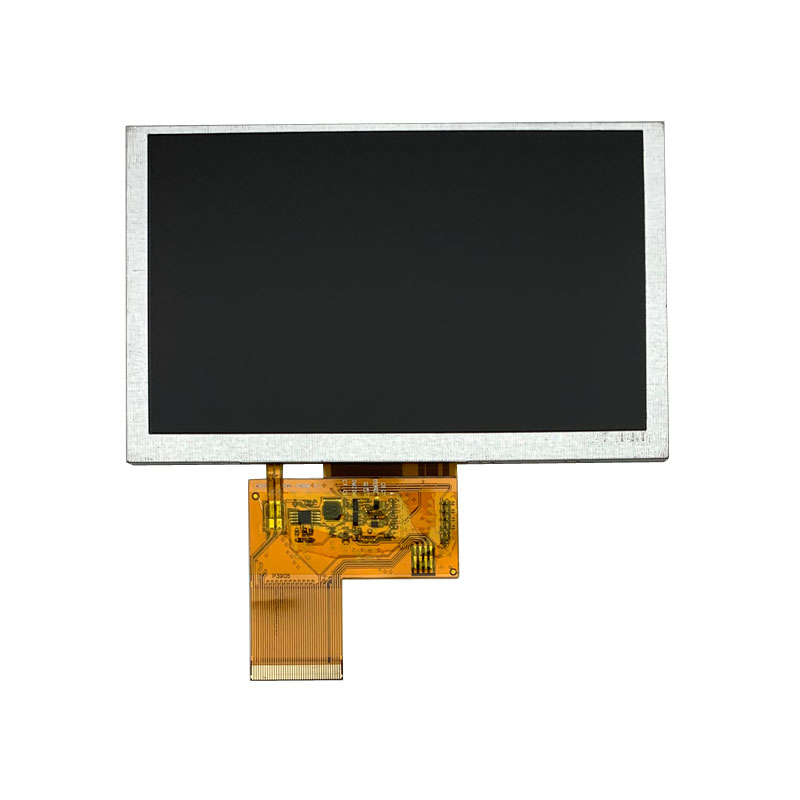

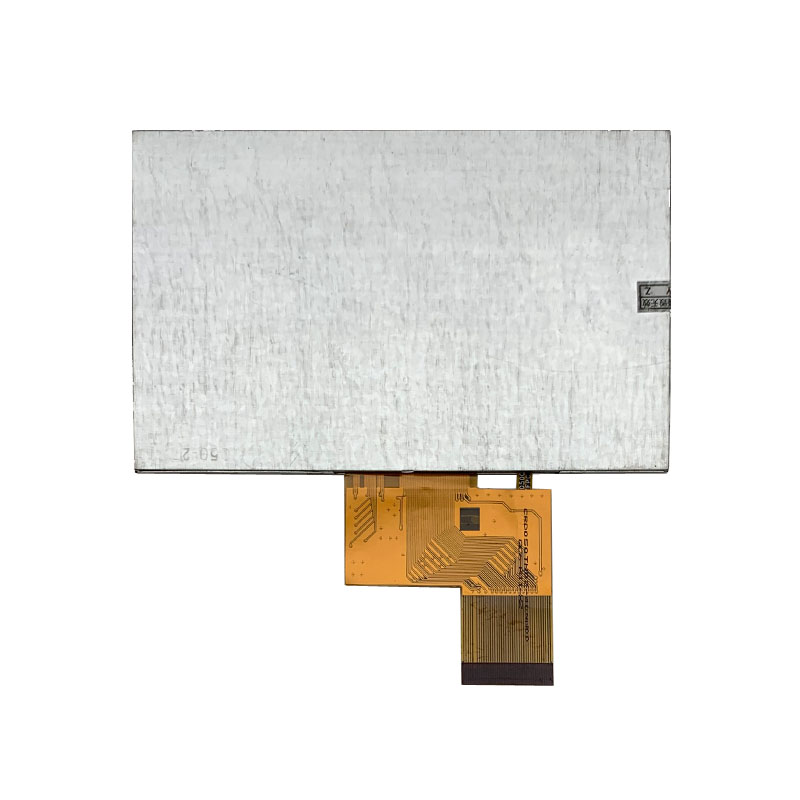

5英寸 方形TFT-LCD , 800*480 ,300亮度
DESCRIPTION

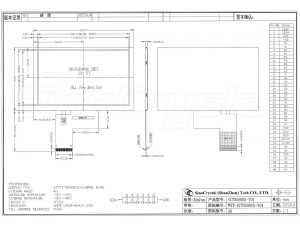

Drawing
General Specification
| Item | Standard value | Unit |
|---|---|---|
| LCD Size | 5 | inch |
| Dot Matrix | 800(RGB) × 480 | pixel |
| Module Size | 120.70 × 75.80 × 2.80 | mm |
| Active Area | 108.00 × 64.80 | mm |
| Dot Pitch | 0.135 × 0.135 | mm |
| Pixel Configuration | R.G.B. Stripe | – |
| Color depth | 16.7M | – |
| Display Mode | Normally Black, Transmissive | – |
| Technology Type | a-Si | – |
| Viewing Direction | All | – |
| Gray Scale Inversion Direction | All | – |
| Driver IC | ST7262 or Compatible | – |
| Interface | RGB | – |
| LED Numbers | 12 LEDs | – |
| Weight | TBD | g |
Interface Definition
| Pin No. | Symbol | Type | Description |
|---|---|---|---|
| 1 | LEDK | P | LED driving cathode |
| 2 | LEDA | P | LED driving anode |
| 3 | GND | P | Ground |
| 4 | VDD | P | Power supply for system |
| 5 – 12 | R0 – R7 | I | Data bus for red |
| 13 – 20 | G0 – G7 | I | Data bus for green |
| 21 – 28 | B0 – B7 | I | Data bus for blue |
| 29 | GND | P | Ground |
| 30 | PCLK | I | Pixel clock input |
| 31 | DISP | I | Display ON/OFF control |
| 32 | HSYNC | I | Horizontal sync input |
| 33 | VSYNC | I | Vertical sync input |
| 34 | DE | I | Data enable input |
| 35 | NC | – | No connection |
| 36 | GND | P | Ground |
| 37 | NC | – | No connection |
| 38 | NC | – | No connection |
| 39 | NC | – | No connection |
