3英寸TFT LCD,COG ,960 * 240 ,ILI8961 IC，8位RGB接口

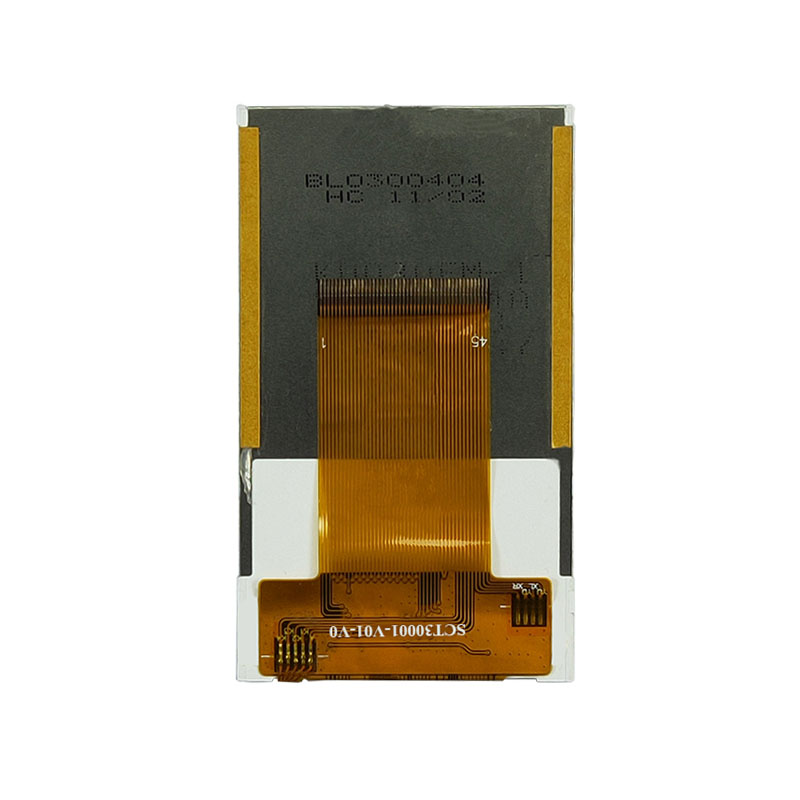

SCT030001-V01 is a 3 inch COG TFT LCD Display with 960 x 240 resolution, it built in with ILI8961 IC, 40 PIN
DESCRIPTION

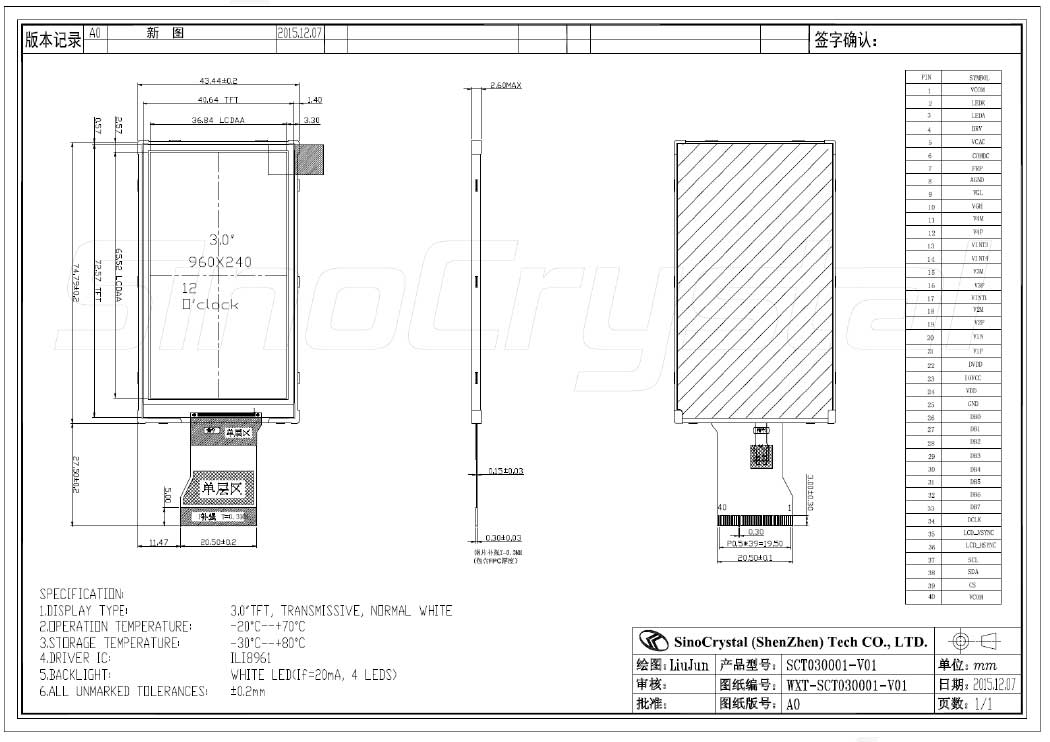

Drawing
General Specification
| Item | Nominal Dimension | Unit |
|---|---|---|
| Dot Matrix | 960 x 240 | Dots |
| Module Size ( W×H×T ) | 43.44 x 74.79 x 2.6 | mm. |
| Active Area ( W×H ) | 36.84 x 65.52 | mm. |
| Pixel arrangement | Delta RGB | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 8-bit RGB / CCIR / YUV | – |
| Driving IC Package | COG | – |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | – |
| LCD Mode | TN/Normal White | – |
| Backlight Type | LED x 4 | PCS |
Interface Definition
| Pin No | Pin Symbol | Level | Description |
|---|---|---|---|
| 1 | VCOM | – | VCOM |
| 2 | K | – | LED backlight Cathode |
| 3 | A | – | LED backlight Anode |
| 4 | DRV | – | Gate signal for the power transistor of the boost converter |
| 5 | VCAC | – | Intermediate voltage for charge pump |
| 6 | VCOM | – | VCOM DC output |
| 7 | FRP | – | Frame polarity output |
| 8 | AGND | – | Power ground |
| 9 | VGL | – | Negative low power supply for gate driver output |
| 10 | VGH | – | Positive power supply for gate driver output |
| 11 | C4M | – | Pins to connect capacitors for power circuitry |
| 12 | C4P | – | Pins to connect capacitors for power circuitry |
| 13 | VINT3 | – | Floating this pin. |
| 14 | VINT2 | – | Floating this pin. |
| 15 | C3M | – | Pins to connect capacitors for power circuitry |
| 16 | C3P | – | Pins to connect capacitors for power circuitry |
| 17 | VINT1 | – | Power setting capacitor connect pin |
| 18 | C2N | – | Pins to connect capacitors for power circuitry |
| 19 | C2P | – | Pins to connect capacitors for power circuitry |
| 20 | C1N | – | Pins to connect capacitors for power circuitry |
| 21 | C1P | – | Pins to connect capacitors for power circuitry |
| 22 | DVDD | – | Power setting capacitor connecting pins. |
| 23 | VDDIO | 1.65-3.6V | Power supply for charge pump circuit |
| 24 | VDD | 2.7-3.6V | Power supply for digital interface |
| 25 | AGND | – | Power ground |
| 26-33 | D0-D7 | H/L | Data input |
| 34 | DCLK | H/L | Data clock |
| 35 | HSYNC | H/L | Line synchronizing |
| 36 | VSYNC | H/L | Frame synchronizing |
| 37 | SCL | H/L | Serial clock input |
| 38 | SDA | H/L | Serial data input |
| 39 | CSB | H/L | Serial chip select, Low enable |
| 40 | VCOM | – | VCOM |
